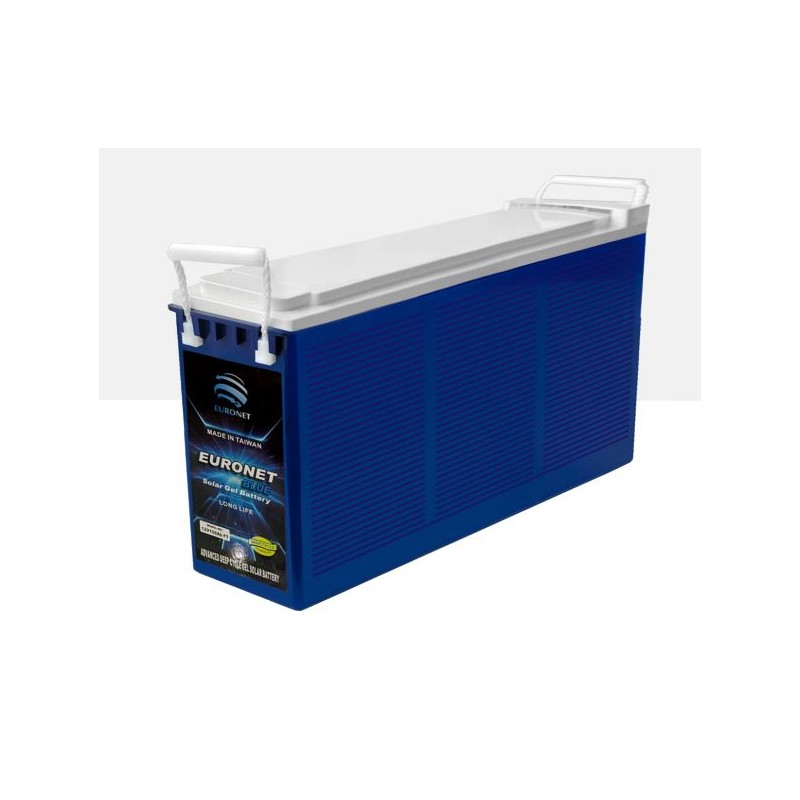

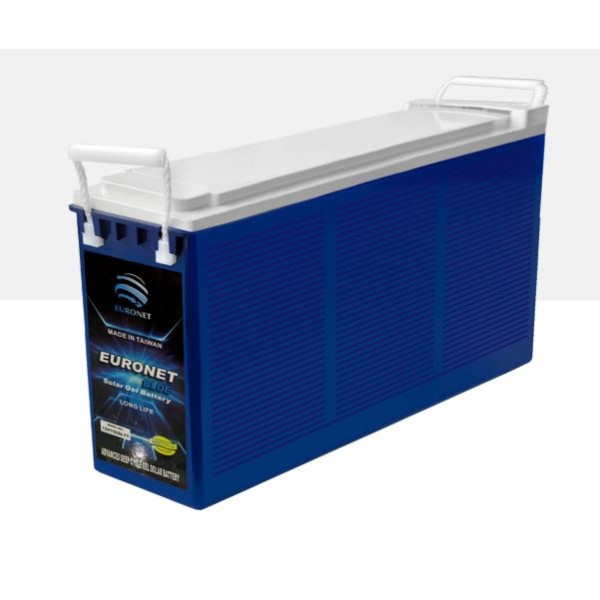

EURONET SOLAR DEEP CYCLE SLIM GEL BATTERY 12V 150AH

       PRODUCT SPECIFICATIONS:

         EURONET SOLAR DEEP CYCLE SLIM GEL BATTERY 12V 150AH

• Cells Per Unit: 6
• Voltage Per Unit: 12
• Capacity: 150Ah 10hr-rate to 1.85V per cell 25°C

• Max. Discharge Current: 1000A (5sec)
• Internal Resistance: Approx. 2.6mΩ
• Operating Temperature Range: Discharge: -40°C ~ 50°C, Charge: -20°C ~ 50°C, Storage: -20°C ~ 50°C
• Normal Operating Temperature Range: 25°C±5°C
• Floating Charging Voltage: 13.50 to 13.80V DC/Unit Average at 25°C
• Max. Charging Current: 37.5A
• Equalization and Cycle Service: 14.70 to 15.00V DC/Unit Average at25°C
• Self-Discharge: The batteries can be stored for more than 6 months at 25°C. Please charge battery before using. For high temperature, the time interval will be shorter.
• Terminal: T14
• Container Material: ABS (UL94-HB) Flammability Resistance of UL94-V0 is Available on Request
• Dimension: (L)570x(W)110x(H)290mm
• Product Weight: N.W - 44.5KG / G.W - 45KG
• Application: Solar Systems, UPS Systems, IT Systems, Data Centers, Power Generation Plants, Telecommunication Equipements.
• User Friendly
• Low Maintenance
• High Performance
• Ultra Long Life Service
• High Recovery Capability
• High Charge Acceptability
• No Water Topping Required
• Maintenance-Free Operation
• Low Pressure Venting System
• Non-Spill Sealed Construction
• Low Self-Discharge - Long Shelf Life
• Wide Operating Temperature Range
