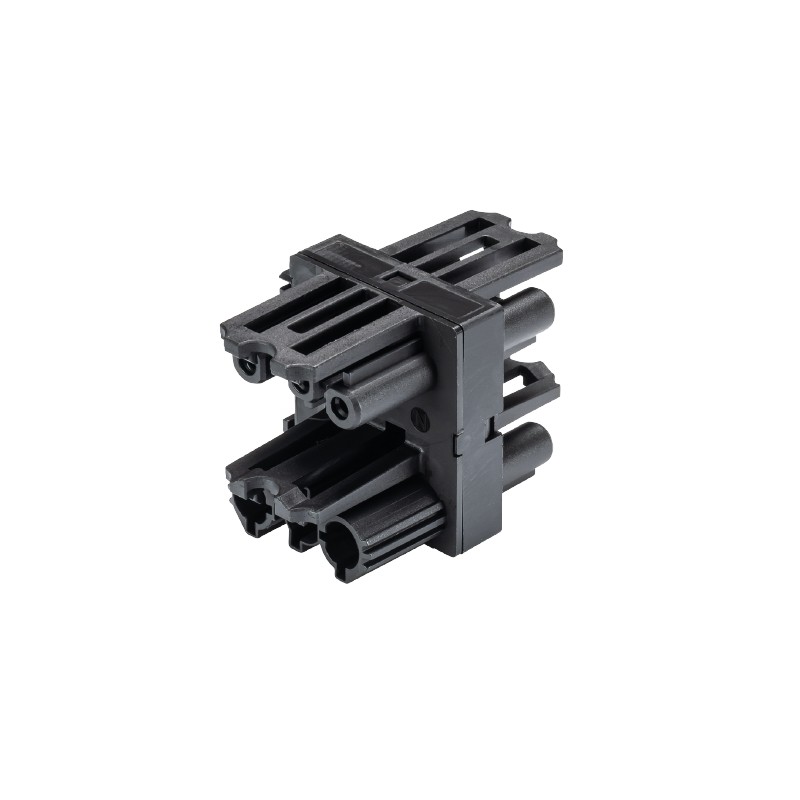

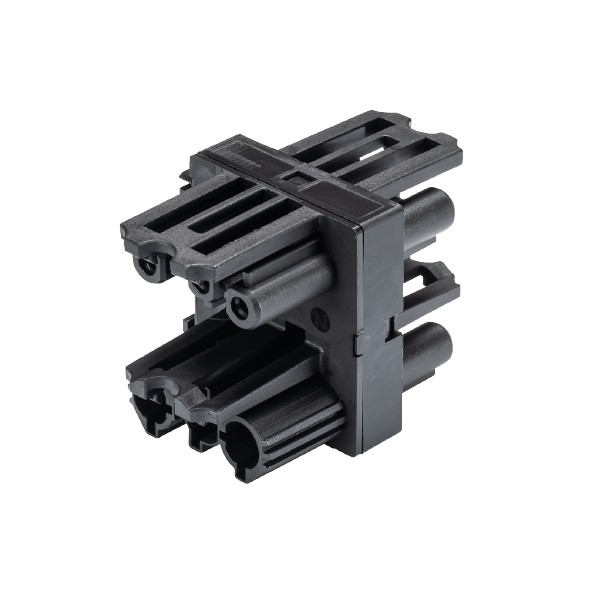

3-Way 3 Pole distributor GST18I3V 3P1 BV - 20A/250V

       Product Specifications:

         3-Way 3 Pole distributor GST18I3V 3P1 BV - 20A/250V

         GENERAL

• Rated Current: 20A
• Rated Voltage: 250V
• Rated Impulse Voltage: 4KV
• Pollution Degree: 2
• Mechanical Code: Code 1
• Lockable: Self-Locking (Unlocking by tool)
• Color of Coding/Contact Carrier: Black
• Codification Field: L, N, PE
• RAL Number Coding/Contact Insert: 9005

         MODEL

• Number of Inputs: 1
• Number of Outputs: 3
• Type of Fastening: Yes
• Degree of Protection (IP): IP40
• Type of Distributor: H-Distributor

         MATERIAL

• Housing Material: Polyamide
• Halogen Free: Yes
• Contact Material: Cu Zn
• Fire Load: 0.159 kWh/St
• Insulation components continuous temperature: 100 °C
• Surface Finish: Tin-Plated

         DIMENSIONS

• Length: 59mm, Width: 37.9mm, Height: 40mm
