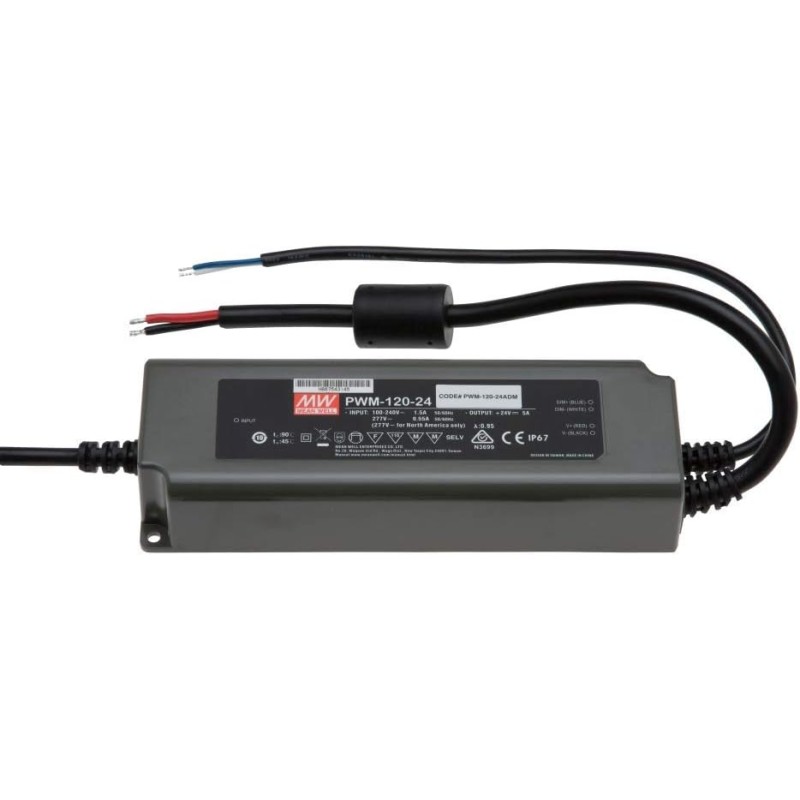

LED DRIVER, 24V 120W 5A OUTPUT, CONSTANT VOLTAGE DIMMABLE

       PRODUCT SPECIFICATIONS:

         LED DRIVER, 24V 120W 5A OUTPUT, CONSTANT VOLTAGE DIMMABLE

• Brand: Mean well
• Output Voltage: 24V
• Max. Output Power: 120W
• Output Current: 5A
• Dimmable: Yes
• Input Voltage: 127 → 431 V dc, 90 → 305 V ac
• Operation: Constant Voltage
• LED Driver Type: LED Driver
• Dimming Operation: PWM, Resistance
• AC or DC Input Voltage: AC, DC
• IP Rating: IP67
• Output: 24V @ 5A
• Current Rating: 1.3A @ 115V ac
• Number of Outputs: 1
• Voltage Rating: 127 → 431 V dc, 90 → 305 V ac
• Configuration: Sealed
• Standards Met: CB, CE, CSA C22.2 No.250.13-12, cULus, EN61347-2-13, EN-62384, ENEC EN61347-1, IP67, PFC, UL8750
• Primary Type: AC-DC, DC-DC
• Dimensions: 191 * 63 * 37.5 (L*W*H)
• Applications: LED Strip Lighting, Indoor LED Lighting, LED Decorative Lighting

          PRODUCT DETAILS:

• The Mean Well PWM-120 Series is a range of 120W LED Drivers with a built-in 3 in 1 dimming function and transmitting PWM style output, adapting to all kinds of LED strips and ensuring that color temperature and brightness is maintained consistent. The PWM-120 LED drivers have a high efficiency of up to 90.5% and a low no load power consumption below 0. 5W. These LED power supplies are waterproof, with the case made of 94V-0 flame retardant plastic. The interior of the PWM-120 is fully potted in silicone, making these LED drivers suited to meet the anti-vibration demand up to 5G and enhancing the heat dissipation. The PWM-120 LED drivers are IP67 rated and can be used in highly dusty and humid harsh environment. The class II design and the double insulation weather resistant cable makes the PWM-120 Led drivers ideal for flexible installation in applications like LED strip lighting, indoor LED lighting, LED decorative lighting and LED architecture lighting.
• Universal AC input
• Built in active PFC function
• Constant Voltage PWM style output
• Built-in 3 in 1 dimming function
• High efficiency of up to 90.5%
• Short circuit, overload, over voltage and over temperature protection
• Fully encapsulated IP67 rated
• Class II power unit, no FG pin
• Operating temperature -40°C to +70°C
• Suitable for dry, damp, wet locations
• No load power consumption below 0.5W

          PWN-120-24 Data Sheet
