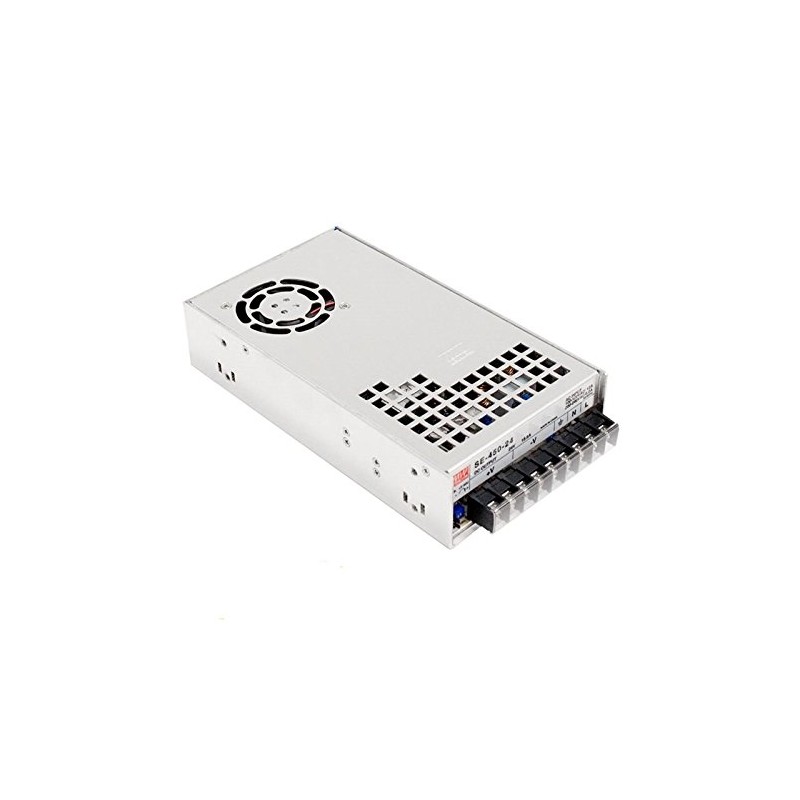

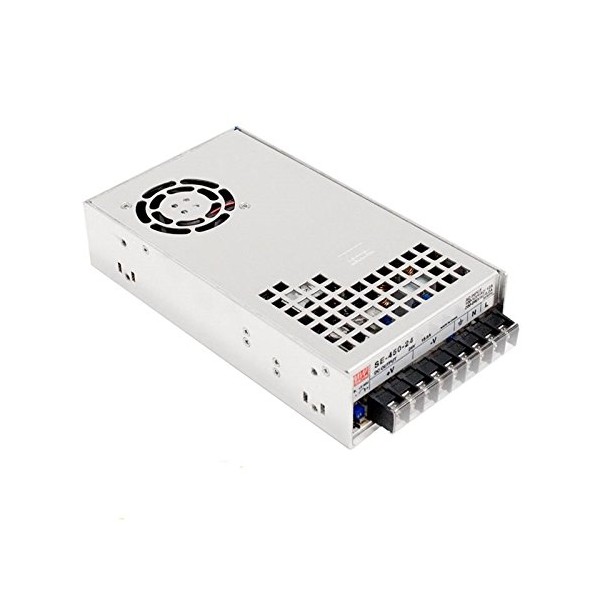

Mean Well SE-450-24 DC24V-450W Single Output Power Supply

       Product Specifications:

         Mean Well SE-450-24 DC24V-450W Single Output Power Supply

• Model: SE-450-24

         OUTPUT

• DC Voltage: 24V
• Rated Current: 18.8A
• Current Range: 0~18A
• Rated Power: 451.2W
• Ripple & Noise: 200mVp-p
• Voltage ADJ. Range: 21.6~28.5V
• Voltage Tolerance: ±1.5%
• Line Regulation: ±0.2%
• Load Regulation: ±0.5%
• Setup, Rise Time: 1500ms, 50ms/230VAC     1500ms, 50ms/115VAC at Full Load
• Hold up Time: 16ms/230VAC     12ms/115VAC at Full Load

         INPUT

• Voltage Range: 90 ~ 132VAC/180 ~ 264VAC Selected by SW   254 ~ 370VDC

• Frequency Range: 47 ~ 63Hz
• Efficiency: 86%
• AC Current: 10A/115VAC     6A/230VAC
• Inrush Current: 35A/115VAC     55A/230VAC
• Leakage Current: <2.5mA/240VAC

         DIMENSION

• 225*124*50mm (L*W*H)

         FEATURES

• AC input active surge current limiting
• AC input range selected by switch
• Protections: Short Circuit/ Overload/ Over Voltage/ Over Temperature
• Forced air cooling by built-in DC ball bearing fan
• Built-in remote sense function
• LED indicator for power on
• UL approved

         Mean Well SE-450-24 Datasheet
