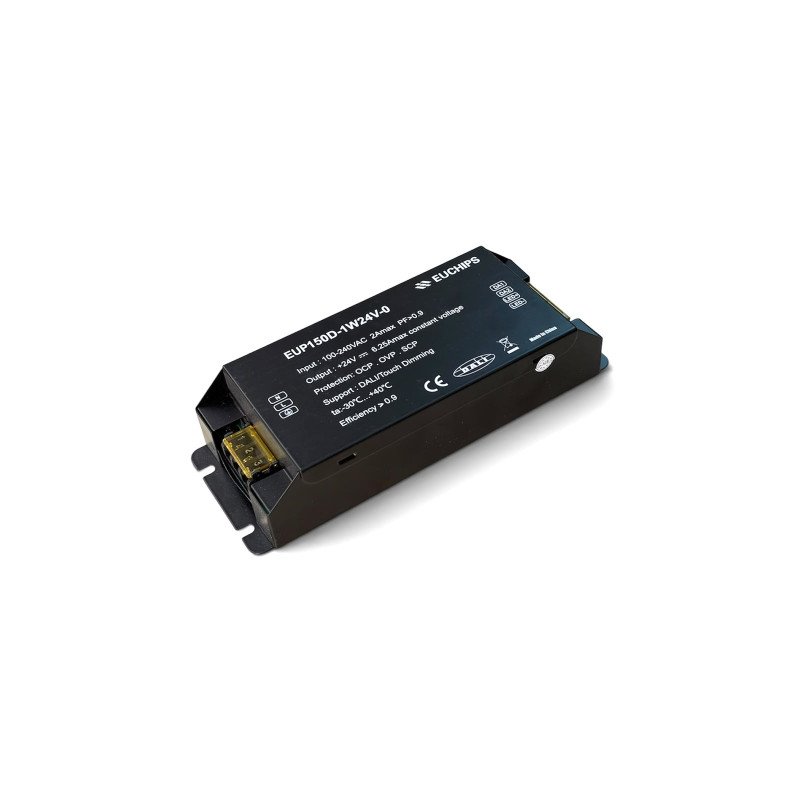

EUCHIPS 150W 24VDC DALI CV Dimming Driver EUP150D-1W24V-0

       Product Specifications:

         EUCHIPS 150W 24VDC DALI CV Dimming Driver EUP150D-1W24V-0

• Brand: EUCHIPS
• Model: EUP150D-1W24V-0

         OUTPUT

• DC Voltage: 24VDC
• Current: 6.25A
• Rated Power: 150W
• Voltage Accuracy: ±3%

• R&N (max): 70mVp-p


         INPUT

• Voltage Range: 100-240VAC
• Frequency Range: 50/60Hz
• Current: 2Amax@230V
• Efficiency: 92%
• Power Factor: ≥0.95/115VAC at rated power

• Leakage Current: <0.5mA/230VAC
• Inrush Current: 40A@230VAC

         PROTECTION

• Over Current: Constant current limiting, recovers automatically after removed

• Short Circuit: Constant current limiting, recovers automatically after removed


          FUNCTION

• DALI Dimming / Touch-dim

         OTHERS

• Dimensions: 206*75*40 mm (L*W*H?
• G.W.(g): 668g
• Working Temp.: -20 ~ 50°C


         FEATURE

• Signal channel constant voltage, 24VDC output
• Meet DALI Protocol IEC62386
• Wide range of input voltage 100VAC ~ 240VAC
• Support Touch-DIM function
• High efficiency up to 92%
• Built-in active PFC function
• Protections: Short circuit, Over current
• IP 20 design
• Suitable for indoor LED lighting application
