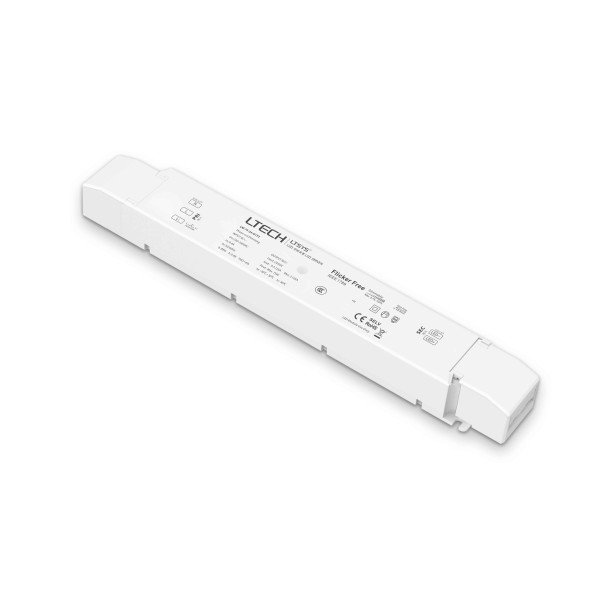

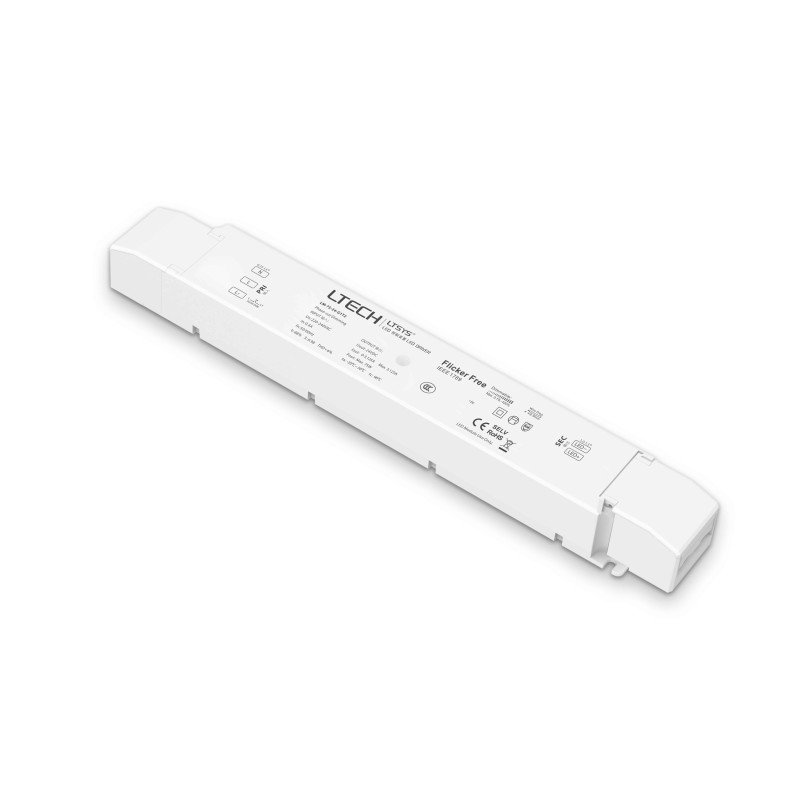

LTECH 75W 24V CV LED Driver LM-75-24-G1T2 | TRIAC Dimmable

       Product Specifications:

         LTECH 75W 24V CV Intelligent LED Driver LM-150-24-G1T2 | TRIAC Dimmable

• Model No.: LM-75-24-G1T2

         OUTPUT

• Output Voltage: 24VDC
• Output Voltage Range: 24Vdc ± 0.5Vdc
• Output Current: Max. 3.125A
• Output Power: Max. 75W
• Output Power Range: 0-75W
• Strobe Level: High frequency exemption level
• Dimming Range: 0-100%, Dimming Depth: Max. 0.1%
• Overload Power Limitation: ≥102%
• Ripple & Noise: ≤150mV
• PWM Frequency: 3600Hz

         INPUT

• Dimming Interface: Leading edge (TRIAC), Trailing edge (ELV) phase-cut and Push DIM.

• Input Voltage: 220-240VAC
• Frequency: 50/60Hz
• Input Current: ≤0.4A/230Vac
• Power Factor: PF>0.98/230Vac (at full load)
• THD: THD<6%@230Vac (at full load)
• Efficiency: 88%
• Inrush Current: Cold start 30A/230Vac
• Control Surge Capability: L-N: 2KV
• Leakage Current: Max. 0.5mA

         ENVIRONMENT

• Working Temperature: ta: -20 ~ 50°C   tc: 90°C
• Working Humidity: 20 ~ 95%RH, non-condensing
• Storage Temperature, Humidity: -40 ~ 80°C, 10~95%RH
• Temperature Coefficient: ±0.03%/°C(0-50°C)
• Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

         PROTECTION

• Overheat Protection: Intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers
• Overload Protection: Shut down the output when current load≥102%, auto recovers.
• Short-circuit Protection: Shut down automatically if short circuit occurs, auto recovers
• Overvoltage Protection: Shut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed | Shut down the output when non-load voltage ≥13V, re-power on to recover after fault condition is removed

         OTHERS

• Gross Weight (G.W): 350g±10g
• Dimensions: 293×43×30mm(L×W×H)
• Package Size: 296×44×33mm(L×W×H)

         FEATURE

• Leading edge (TRIAC), Trailing edge (ELV) phase-cut and Push DIM.
• With soft-on and fade in function, visual more comfortable.
• Dimming range: 0~100%, LED start at 0.1% possible. 0-100% flicker-free, High frequency exemption level.
• Highly Efficient driver: efficiency 88%, PF>0.98, THD<6% Innovative thermal management technology, intelligent power life protection.
• Overload / Over temp. / Short circuit / Over voltage protection, recover automatically.
• Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ. Up to 50000-hour lifetime.
• 5 years warranty (Rubycon capacitor).
• Flicker Free IEEE 1789 Achieve the Exemption Level.
• Dimmable: 0.1%-100%.

          LTECH LM-75-24-G1T2 Datasheet
