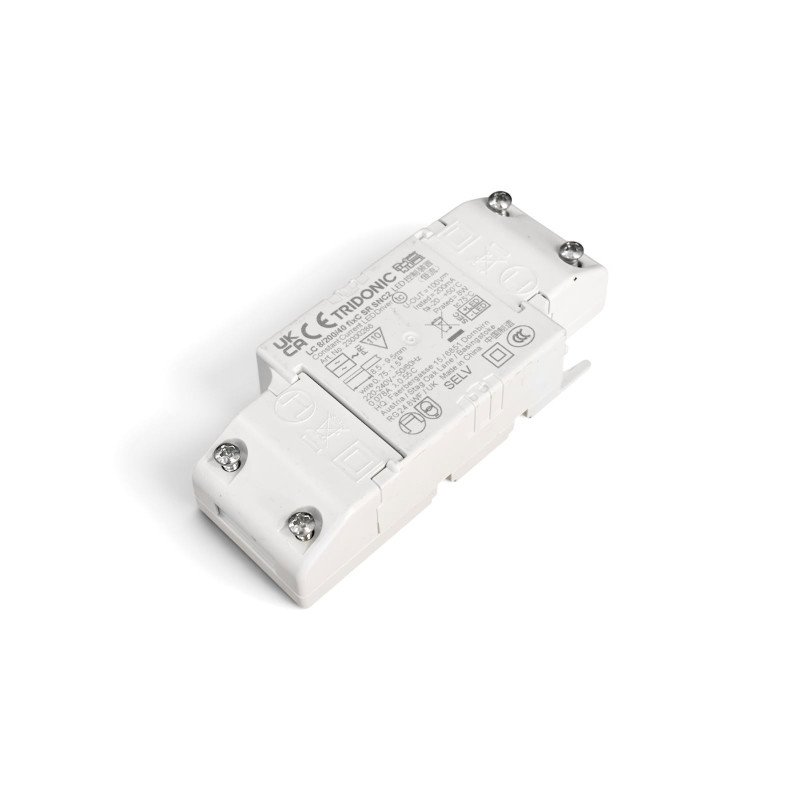

TRIDONIC LC 8/200/40 fixC SR SNC2 Constant Current LED Driver

       Product Specifications:

         TRIDONIC LC 8/200/40 fixC SR SNC2 Constant Current LED Driver

• Model No.: LC 8/200/40 fixC SR SNC2

         TECHNICAL DATA

• Output Current: 200mA
• Input Current, 230V, Full Load: 78.0mA
• Min. Forward Voltage: 23V
• Max. Forward Voltage: 40V
• Max. Output Voltage (U-OUT): 100V
• Max. Output Power: 8W
• Output Power Range: 4.6-8W
• Typ. Power Consumption (at 230V, 50Hz, Full Load): 9.5W
• Max. Input Power: 10W
• Efficiency at Min. Load: 80%
• Efficiency at Full Load: 82%
• λ at Full Load: 0.55C
• λ Over Full Operating Range (min.): 0.5C
• Output Current Tolerance: ±7.5%
• Max. Peak Output Current: 225mA
• Output Current Ripple: ±5%
• Ambient Temperature ta (at Lifetime 50,000h): 40°C
• Ambient Temperature ta: -25...50°C
• Max. Casing Temperature tc: 75°C
• Dimension (LxWxH): 100mx43mmx22.5mm

         COMMON DATA

• Rated Supply Voltage: 220-240V
• AC Voltage Range: 198-264V
• Mains Frequency: 50/60Hz
• Overvoltage Protection: 320VAC, 1h
• THD (at 230V, 50Hz, Full Load): ≤120%
• Starting Time (at 230V, 50Hz, Full Load): ≤0.5s
• Turn Off Time (at 230V, 50Hz, Full Load): ≤0.5s
• Hold on Time at Power Failure: 0s
• Typical output LF current ripple at full load: ± 5 %
• Output P_ST_LM (at full load): ≤ 1
• Output SVM (at full load): ≤ 0.4
• Storage temperature ts: -40 – 80 °C


         PRODUCT DESCRIPTION

• Independent LED driver with cable clamps
• Extra flat housing for constrained installation conditions (small ceiling cut outs and low ceiling voids)
• For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
• Temperature protection as per EN 61347-2-13 C5e
• Output current 200 mA
• Max. output power 8 W
• Nominal lifetime up to 50,000 h

         HOUSING PROPERTIES

• Casing: polycarbonate, white
• Type of protection IP20
• Push-in terminals
• 2 separate strain relief parts for input and output cables with highly robust clamps

         FUNCTIONS

• Overload protection
• Short-circuit protection
• No-load protection
• No output current overshoot at mains on/off
• Burst protection voltage 1 kV
• Surge protection voltage 0.5 kV (L to N)
• Surge protection voltage 1 kV (L/N to earth)

         TYPICAL APPLICATIONS

• For spot light and downlight in retail and hospitality applications
• For panel light and area light in office and education application
