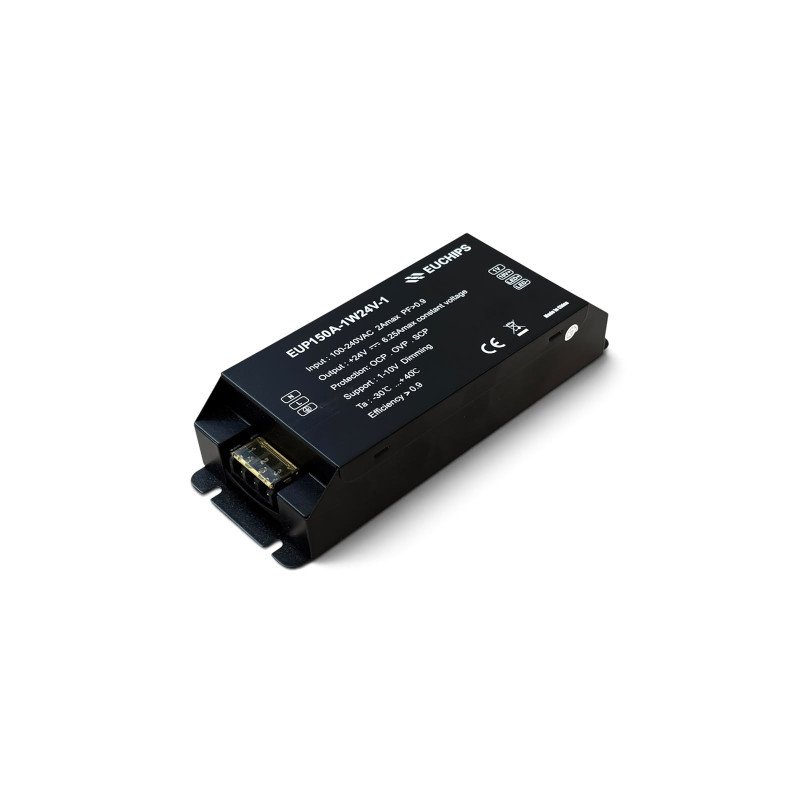

EUCHIPS 150W 24VDC 0/1-10V CV Dimming Driver EUP150A-1W24V-1

       Product Specifications:

         EUCHIPS 150W 24VDC 0/1-10V CV Dimming Driver EUP150A-1W24V-1

• Brand: EUCHIPS
• Model: EUP150A-1W24V-1

         OUTPUT

• DC Voltage: 24VDC
• Current: 6.25A
• Rated Power: 150W
• Voltage Accuracy: ±5%

• R&N (max): 200mVp-p
• Channels: 1

         INPUT

• Voltage Range: 100-240VAC
• Frequency Range: 50/60Hz
• Current: 2Amax@100V
• Efficiency: 90%
• Power Factor: ≥0.9

• Inrush Current: 30A@230VAC

         PROTECTION

• Overload: Hiccup mode, recovers after fault condition is removed

• Short Circuit: Hiccup mode, recovers after fault condition is removed
• Over Voltage: Hiccup mode, recovers after fault condition is removed

          FUNCTION

• 1-10V dimming (Passive or active)

         OTHERS

• Dimensions: 206*75*40 mm (L*W*H?
• G.W.(g): 710g
• Working Temp.: -30 ~ 40°C
• Relative Humidity: 20~90% RH

         FEATURE

• Signal channel constant voltage, 24V
• Support 1-10V analog dimming signal, passive or active signal
• Wide input voltage of 100-240VAC
• High efficiency up to 90%
• 100% output when no dimming signal input, can be used as normal power supply
• Dimming effect smooth, no flicker
• Over current protection, over voltage protection, short circuit protection
• Suitable for indoor LED lighting application
