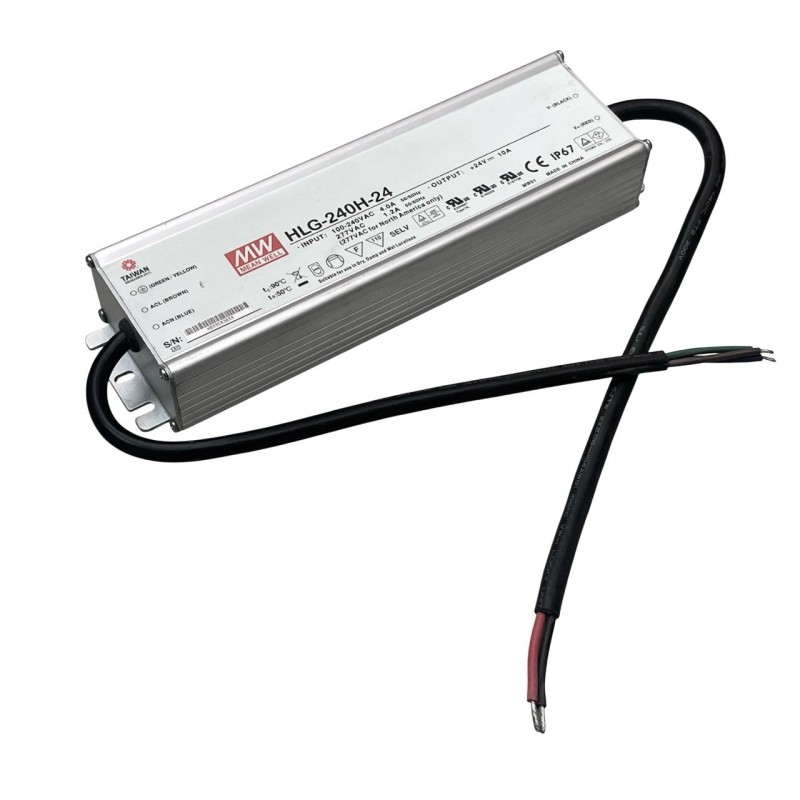

AC-DC SINGLE OUTPUT LED DRIVER, OUTPUT 24VDC at 10A, IP67

       PRODUCT SPECIFICATIONS:

         MEAN WELL AC-DC SINGLE OUTPUT LED DRIVER MIX MODE (CV+CC) WITH BUILT-IN PFC, OUTPUT 24VDC at 10A, IP67

• Brand: Mean Well
• Item No.: HLG-240H-24
• Series: HLG-240
• Description: AC-DC Single output LED driver Mix mode (CV+CC) with built-in PFC; Output 24Vdc at 10A; IP67; Cable output
• Application: ITE EN/UL/IEC 60950 LED EN 61347
• Technology: AC/DC, Constant Current C.C., Constant Power C.P., Constant Voltage C.V.
• Power Format: Box Type - Enclosed, Enclosed Metal housing
• Output Power: 240W
• Output Voltage: 24V
• Output Current: 10A
• Input Voltage: 110/230 universal input 90 - 305
• IP Rating: IP67
• Dimensions: Width 68mm, Height 38.8mm, Depth 220mm
• Housing Type: Metal

       Data Sheet
