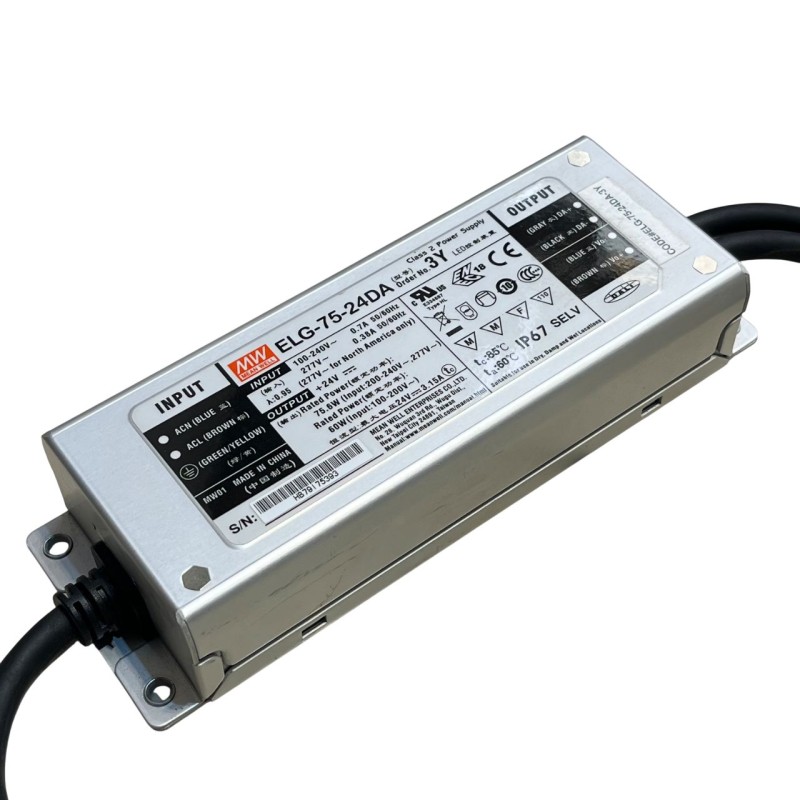

ELG-75-24DA Constant Voltage + Constant Current LED Driver

       Product Specifications:

         Mean Well ELG-75-24DA Constant Voltage + Constant Current LED Driver

• Model No.: ELG-75-24DA
• Dimension: 180*63*35.5mm (L*W*H)
• Mean Well ELG-75-24DA Data Sheet

         OUTPUT

• DC Voltage: 12V
• Constant Current Region: 12 ~ 24V
• Rated Current: 3.15A
• Rated Power: 200VAC ~ 305VAC: 75.6W, 100VAC ~ 180VAC: 60W
• Ripple and Noise: 200mVp-p
• Voltage ADJ. Range: 21.6 ~ 26.4V
• Current ADJ. Range: 1.57 ~ 3.15A
• Voltage Tolerance: ±3.0%
• Line Regulation: ±0.5%
• Load Regulation: ±1.0%
• Setup, Rise Time: 500ms, 100ms/115VAC, 230VAC
• Hold Up Time: 10ms/230VAC 10ms/115VAC (at full load)

         INPUT

• Voltage Range: 100 ~ 305VAC 142 ~ 431VDC
• Frequency Range: 47 ~ 63Hz
• Power Factor: PF?0.97/115VAC, PF?0.95/230VAC, PF?0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
• Total Hormonic Distortion: THD< 20% (@load?50%/115VC,230VAC; @load?75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
• Efficiency: 88%
• AC Current: 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
• Inrush Current: COLD START 50A (t width=350μs measured at 50% I peak) at 230VAC; Per NEMA 410
• MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
• Leakage Current: <0.75mA / 277VAC
• NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A / Dx / D2-Type Standby power consumption <0.5W for B / AB / DA-Type
