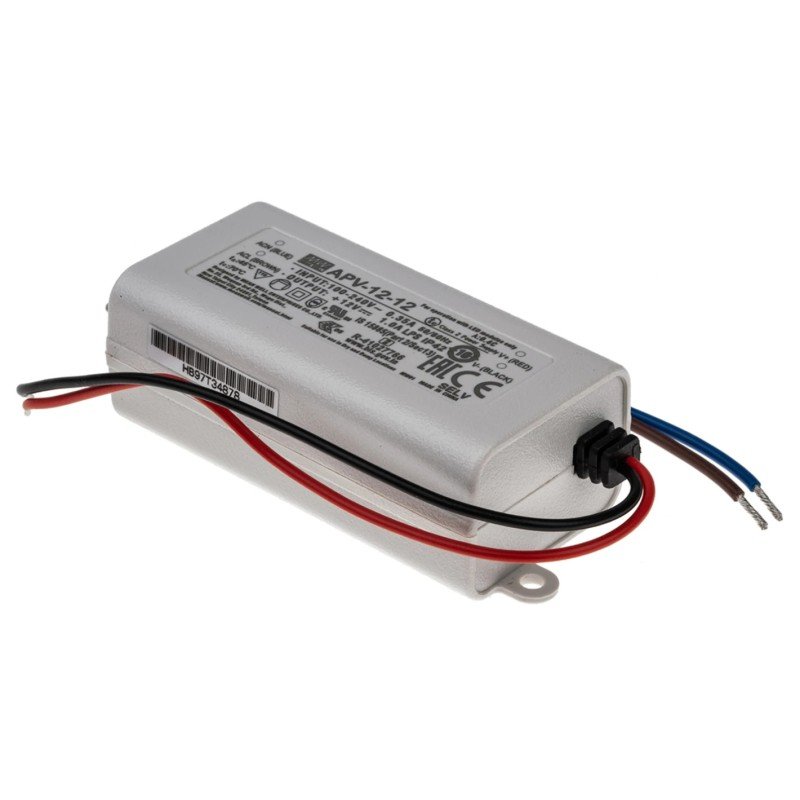

MEAN WELL 12V-12W LED DRIVER 1A - IP42

       PRODUCT SPECIFICATIONS:

         MEAN WELL 12V-12W LED DRIVER 1A

• Model No.: APV-12-12

         OUTPUT

• DC Voltage: 12V
• Rated Current: 1A
• Current Range: 0~1A
• Rated Power: 12W
• Ripple & Noise: 120mVp-p
• Voltage Tolerance: ±5.0%
• Line Regulation: ±1.0%
• Load Regulation: ±2.0%
• Setup, Rise Time: 1500ms, 30ms/230VAC     1500ms, 30ms/115VAC at Full Load
• Hold Up Time: 20ms/230VAC     15ms/115VAC at Full Load

         INPUT

• Voltage Range: 90~264VAC     127~370VDC
• Frequency Range: 47 ~ 63Hz
• Efficiency: 82%
• AC Current: 0.2A/230VAC     0.35A/115VAC
• Inrush Current: Cold Start 70A at 230VAC
• Leakage Current: 0.25mA/240VAC

          DIMENSION

• 77mm*40mm*29mm (L*W*H)

         APV-12-12 Datasheet
