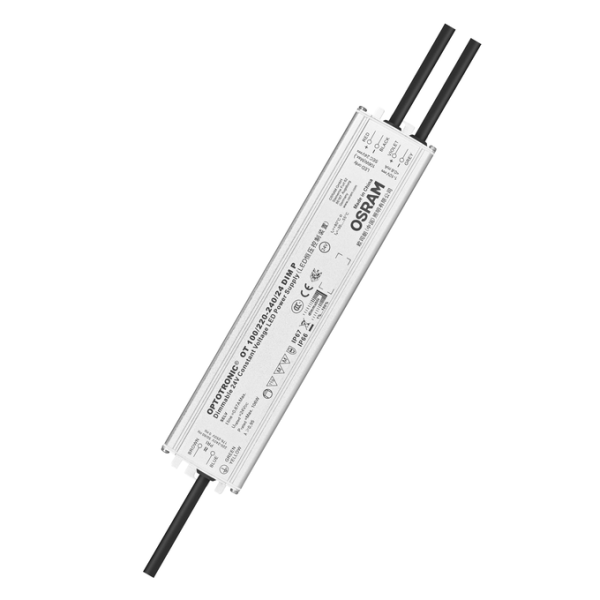

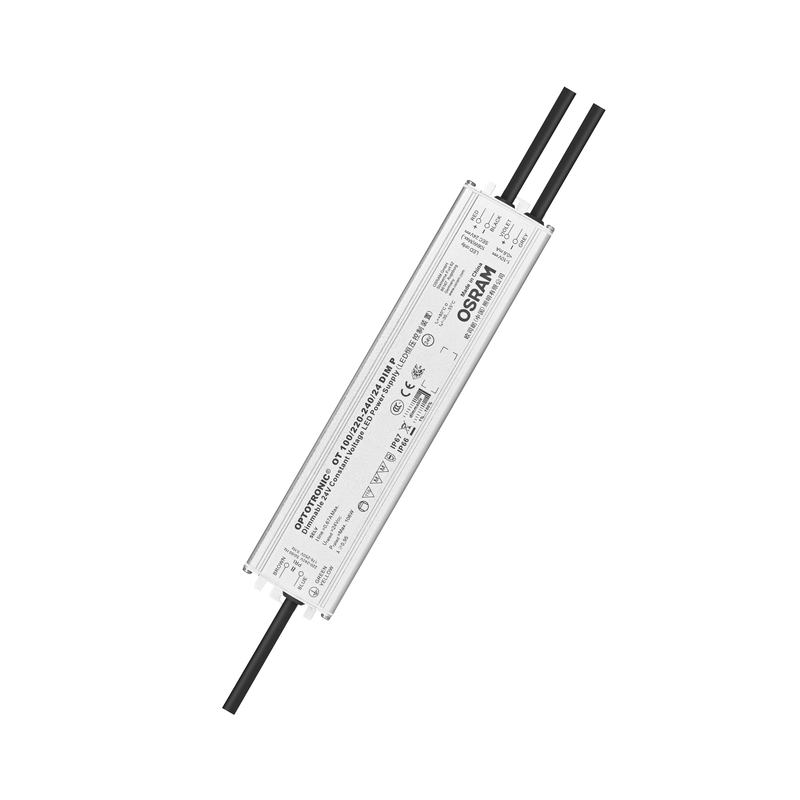

Osram OT 100/220-240/24 DIM P Constant Voltage LED Driver

       Product Specifications:

         Osram Optotronic OT 100/220-240/24 DIM P Dimmable 24V Constant Voltage LED Power Supply

          Electrical Data

• Nominal Wattage: 106W
• Nominal Output Power: 100W
• Nominal Voltage: 220...240V
• Nominal Output Voltage: 24.2V
• Input Voltage AC: 198...264V
• Input Voltage DC: 176...276V
• U-Output (Working Voltage): 30V
• Inrush Current: 60A
• Mains Frequency: 0/60Hz
• Total Hormonic Distortion: <15%
• Power Factor λ: 0.95
• ECG Efficiency: 90%
• Device Power Loss: 10W
• Max. ECG no. on circuit breaker 10 A (B): 10
• Max. ECG no. on circuit breaker 16 A (B): 16
• Max. ECG no. on circuit breaker 25 A (B): 26
• Surge capability (L/N-Ground): 6kV
• Surge capability (L-N): 4kV
• Galvanic isolation: SELV
• Power loss in stand-by mode: <0.5W

         Dimension & Weight

• Length: 240mm
• Mounting hole spacing, length: 227mm
• Width: 50mm
• Height: 34mm
• Cable cross-section, input side: 1 mm²
• Cable cross-section, output side: 1 mm²
• Wire preparation length, input side: 90mm
• Wire preparation length, output side: 90mm
• Product weight: 765g

         Color & Material

• Casing Material: Metal
• Body Material: Metal

         Temperatures & operating conditions

• Ambient temperature range: -30…+55 °C
• Maximum temperature at tc test point: 80 °C
• Max. housing temperature in case of fault: 110 °C
• Permitted rel. humidity during operation: 5…85 % 1)

         Capabilities

• Dimmable: Yes
• Dimming Interface: 1-10V
• Dimming Range: 1-100%
• Overheating Protection: Yes
• Overload Protection: Yes
• Short-Circuit Protection: Yes
• No-Load Proof: Yes
• Suitable for fixtures with prot. class: l
• Type of connection, output side: Cables

         Product benefits

• Large range of products from 20 W to 250 W
• Installation in very cold and hot environments
• Very stable output power
• High electronical reversible short-circuit, overload, overtemperature protection
• Smart Power Supply: boosting power to turn on cold LEDs
• Independent installation possible
• Dimming range: 1…100 %

         Areas of application

• Facades, public squares, cruise ships
• Signage
• Suitable for indoor and outdoor installations

         Product features

• DC mode functionality
• Type of protection: IP66 and IP67
• Surge protection: up to 4 kV (L-N) / 6 kV (L/N-PE)
• Wide operating temperature range: -30…+55 °C
• Lifetime: up to 50,000 h (temperature at max. tc )
• Dimmable via fully isolated 1…10 V interface

          Osram OT 100/220-240/24 DIM P Datasheet
