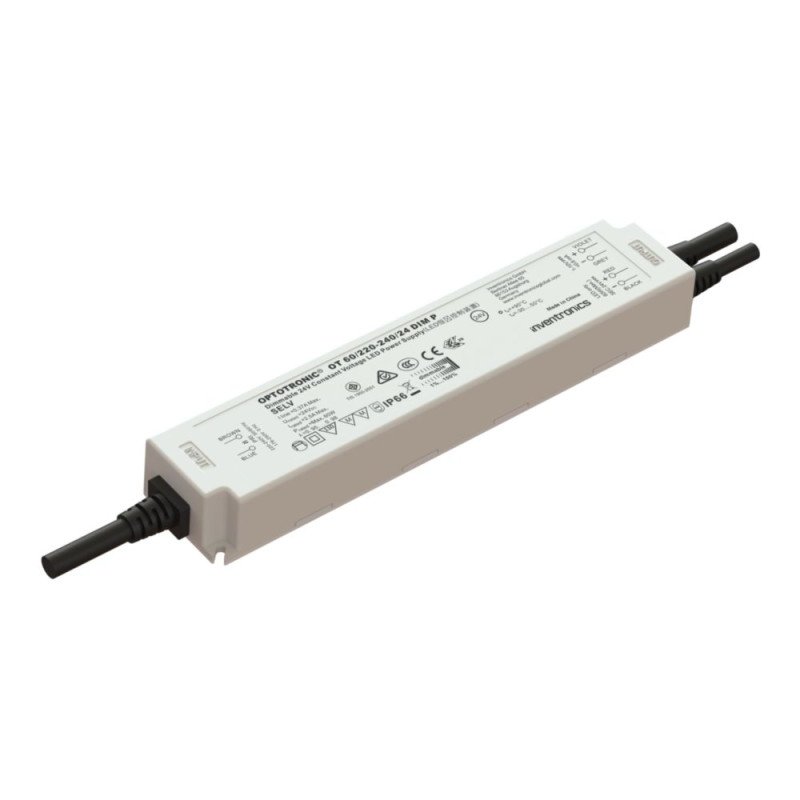

Osram OT 60/220-240/34 DIM P Constant Voltage LED Driver

       Product Specifications:

         Osram Optotronic OT 60/220-240/34 DIM P Dimmable Constant Voltage LED Power Supply

• Nominal Input Voltage: 220...240V
• Nominal Frequency: 0...60Hz
• Input Voltage AC: 198...264V
• Input Voltage DC: 176...276V
• Total Hormonic Distortion: < 15%
• Power Factor λ: 0.95
• Efficiency In Full-Load: 86 % 1)
• Device Power Loss: 7.8W
• Inrush Current: 30A
• Max. ECG no. on circuit breaker 10 A (B): 21
• Max. ECG no. on circuit breaker 16 A (B): 34
• Surge capability (L/N-Ground): Not Relevant
• Surge capability (L-N): 4kV
• Nominal output voltage: 24.2V
• U-OUT (working voltage): 30V
• Output PSTLM: <1
• Output SVM: <0.4
• Nominal output power: 60W
• Maximum Output Power: 60 W 2)
• Galvanic Isolation: SELV
• Dimensions (LxWxH): 208mmx43mmx26mm
• Casing Material: Plastic
• Dimmable: Yes
• Dimming Interface: 1-10V
• Dimming Range: 1-100%
• Dimming Method: Pulse Width Modulation
• IP Rating: IP66 & IP67

         Osram OT 60/220-240/24 DIM P Datasheet
