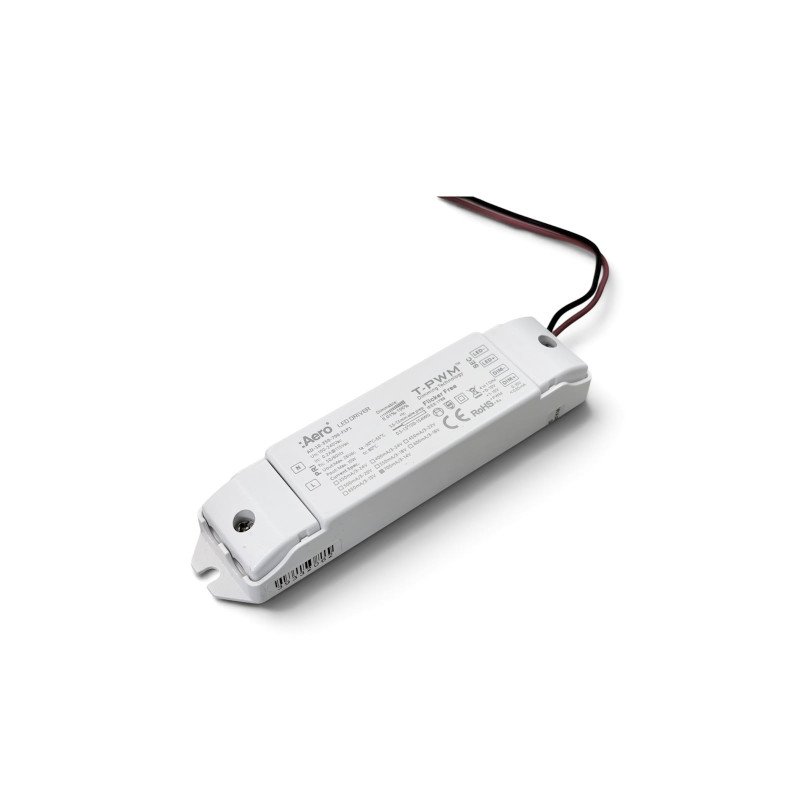

AERO AD-10-350-700-F1P1 10W 350-700mA Dimmable LED Driver

       Product Specifications:

         AERO AD-10-350-700-F1P1 10W 350-700mA Dimmable LED Driver

• Model: AD-10-350-700-F1P1
• Dimensions: 135×30×320mm(L×W×H)

         OUTPUT

• Output Voltage: 3-24VDC
• Max. Output Voltage: 26VDC
• Output Current: 350-700mA
• Output Power: Max. 10W
• Strobe Level: Exemption assessment level
• Dimming Range: 0~100%, LED start at 0.01% possible.
• LF current ripple(<120Hz): <2%
• Current Accuracy: ±5%
• Ripple and Noise: ≤2V
• PWM Frequency: 3600Hz

         INPUT

• Dimming Interface: 0-10V (1-10V/10VPWM/RX)
• Input Voltage Range: 100-240Vac
• Frequency: 50/60Hz
• Input Current: 0.2A@115Vac, 0.15A@230Vac
• Efficiency: 80%
• Inrush Current: Cold start 20A at 230Vac
• Control Surge Capability: L-N: 1kV
• Leakage Current: <0.5mA/230Vac

         ENVIRONMENT

• Working Temperature: ta: -30°C ~ 55°C tc: 80°C
• Working Humidity: 20 ~ 95%RH, non-condensing
• Storage Temp., Humidity: -40°C ~ 80°C, 10~95%RH
• Temp. Coefficient: ±0.03%/°C (0-50°C)
• Vibration: 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes

          PROTECTION

• Overload Protection: When O/P voltage exceed its range, O/P current declines, auto recovers when the load is reduced.
• Over-Heat Protection: PCB temp.: >110°C, shut down; 100°C~110°C, output power reduces to 50% of current power; <90°C, normal.
• Short Circuit Protection: Shut down automatically if short circuit occurs, auto recovers after faulty condition is removed.

         FEATURE

• Dimming interface Built-in SCM, dimming curve and smoothing time can be customized.
• PWM digital dimming, no alter LED color rendering index.
• Dimming range: 0~100%, LED start at 0.01% possible.
• Automatic recognition of 0-10V, 1-10V input signal.
• 0~100% flicker-free, achieve the level of exemption assessment.
• Over load / Over-heat / Short circuit protection.
• Class 2 power supply. Full protective plastic housing.
• Compliant with Safety Extra Low Voltage standard.
• Suitable for internal lights application for ?/?/?. : 0-10V(1-10V/10VPWM/RX), Push DIM
