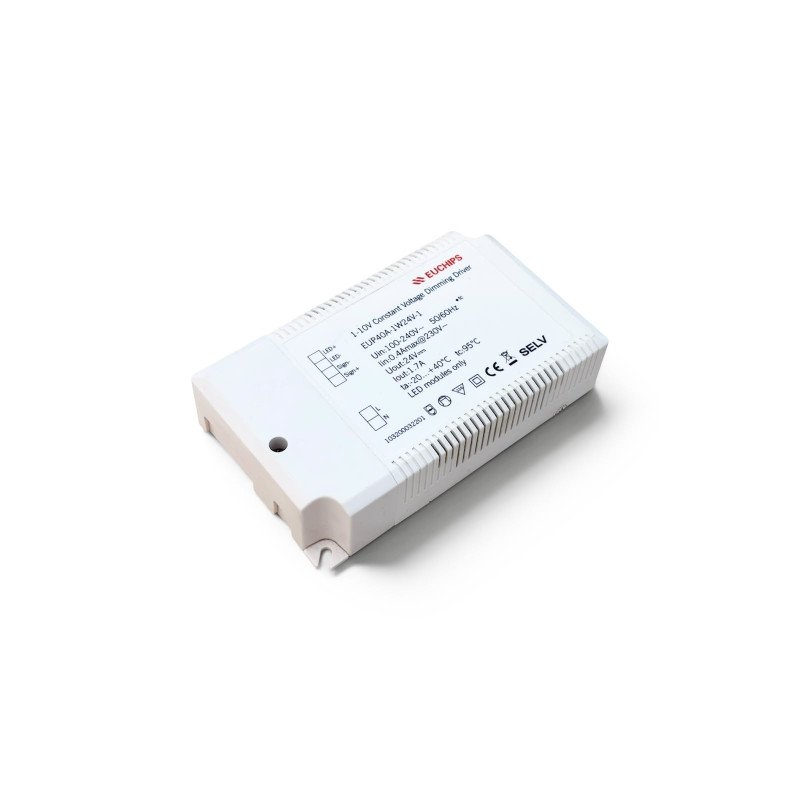

EUCHIPS 40W 24VDC 1-10V CV Dimming Driver EUP40A-1W24V-1

       Product Specifications:

         EUCHIPS 40W 24VDC 1-10V CV Dimming Driver EUP40A-1W24V-1

• Brand: EUCHIPS
• Model: EUP40A-1W24V-1

         OUTPUT

• DC Voltage: 24VDC
• Current: 1.7A/CH
• Rated Power: 40.8W
• Voltage Tolerance: ±3%
• R&N (max): 400mVp-p
• Channels: 1

         INPUT

• Voltage Range: 220-240VAC
• Frequency Range: 50/60Hz
• Efficiency: >88%@230VAC, full load
• Power Factor: >0.95@230VAC, full load
• THD: <10%@230VAC, full load
• Current: 0.4Amax@230V

• Inrush Current: Cold start, 30A (t width=650us measured at 50% I peak) @230VAC

         PROTECTION

• Overload: Hiccup, recovers after fault condition is removed
• Over Temperature: Shut down the output, recover automatically when temp. back to normal
• Short Circuit: Hiccup, recovers after fault condition is removed

          FUNCTION

• Dimming: 1-10V/ Adjustable resistance /PWM

         OTHERS

• Dimensions: 137 (L)*82(W)*31(H)mm
• G.W.(g): 225g
• Working Temp.: -20 ~ 50°C
• Relative Humidity: 20~90% RH

         FEATURE

• Single channel constant voltage output,1.7A Max
• Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)
• Built-in active PFC function
• Dimming range of 0-100%, and dimming effect smooth, no flicker
• 100% output when no dimming signal input, can be used as normal power supply
• Over load protection; Over temperature protection; Short circuit protection
• Suitable for indoor LED lighting application, such as LED strips, spotlight, wall washer, and so on
