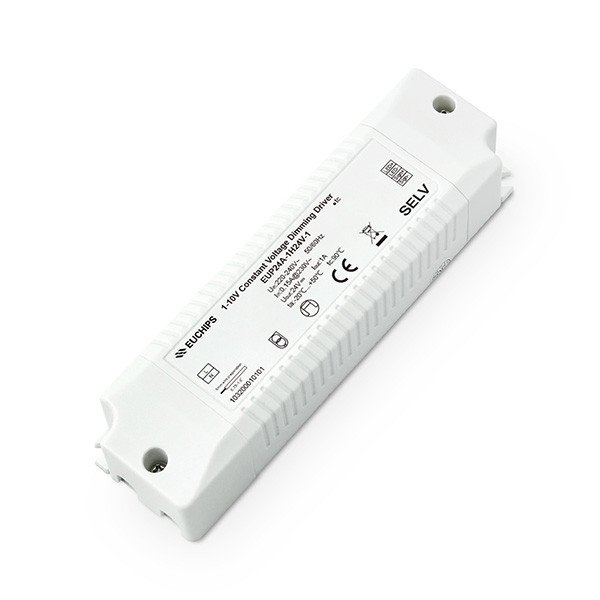

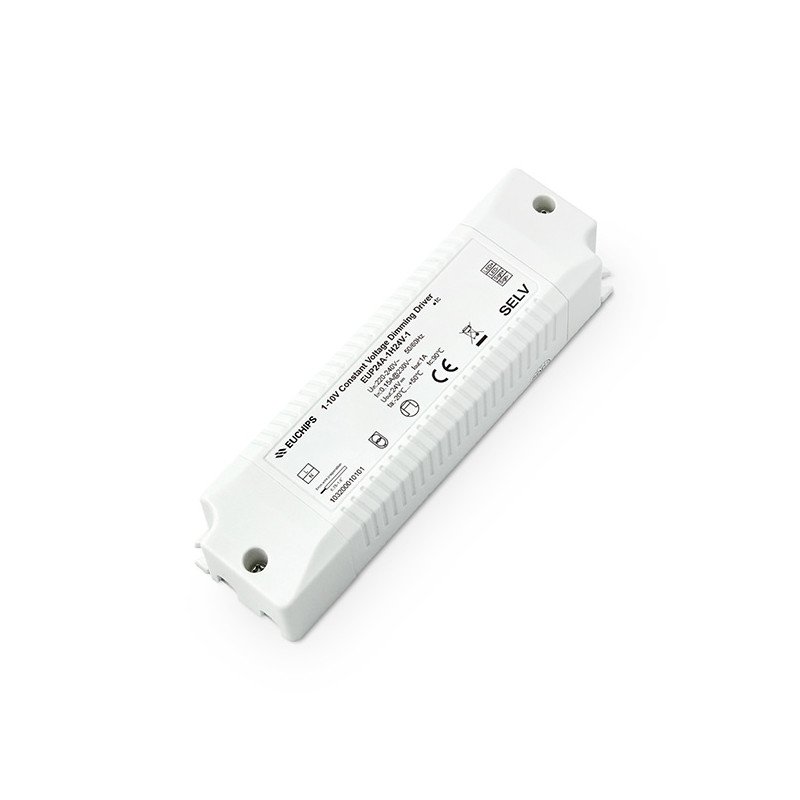

EUCHIPS 24W 24VDC 1-10V CV Dimming Driver EUP24A-1H24V-1

       Product Specifications:

         EUCHIPS 24W 24VDC 1-10V CV Dimming Driver EUP24A-1H24V-1

• Brand: EUCHIPS
• Model: EUP24A-1H24V-1

         OUTPUT

• DC Voltage: 24VDC
• Current: 1A
• Rated Power: 24W
• Voltage Accuracy: ±3%

• Channels: 1

         INPUT

• Voltage Range: 220-240VAC
• Frequency Range: 50/60Hz
• Efficiency: >85%@230VAC, full load
• Power Factor: >0.95@230VAC, full load
• THD: <10%@230VAC, full load
• Current: 0.15Amax@230V

• Inrush Current: Cold start, 15A (t width=40us measured at 50% I peak) @230VAC

         PROTECTION

• Overload: Close output, recovers automatically after fault removed
• Over Temperature: Close the output, automatically restore the normal temperature
• Short Circuit: Close output, recovers automatically after fault removed

          FUNCTION

• 1-10V active signal, adjustable resistance and PWM signal

         OTHERS

• Dimensions: 150 (L)*43(W)*29(H)mm
• G.W.(g): 150g
• IP Rating: IP20
• Working Temp.: -20°C ~ 50°C
• Relative Humidity: 20~90% RH

         FEATURE

• Single channel constant voltage output, 1A Max
• Support 3-in-1 dimming mode (1-10V active signal, adjustable resistance and PWM signal)
• Dimming range of 0-100%, and dimming effect smooth, no flicker
• 100% output when no dimming signal input, can be used as normal power supply
• Overload protection; over temperature protection, short circuit protection
• IP20, suitable for indoor LED lighting
