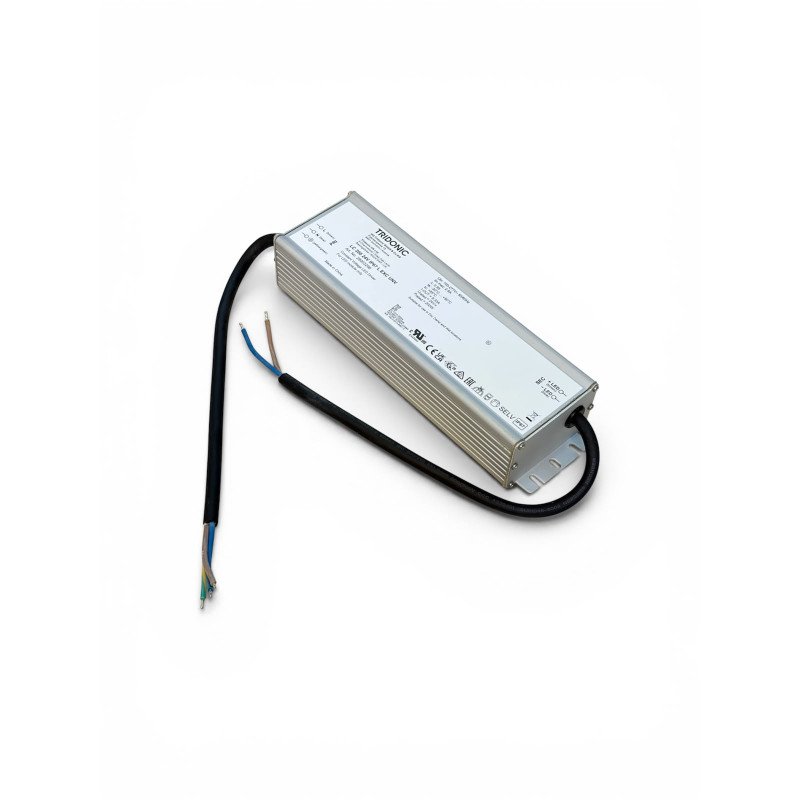

Tridonic 28003298 200W 24V LED Driver LC 200 24V IP67 EXC UNV

       Product Specifications:

         Tridonic 28003298 200W 24V LED Driver LC 200 24V IP67 EXC UNV

• Model No.: LC 200 24V IP67 EXC UNV
• Rated Supply Voltage: 100-277V
• AC Voltage Range: 90-305V
• Mains Frequency: 50/60Hz
• Rated Current (at 120V, 60Hz, Full Load): 2.8A
• Rated Current (at 230V, 50Hz, Full Load): 2.8A
• Rated Current (at 277V, 60Hz, Full Load): 2.8A
• Leakage current (at 120 V, 60 Hz, full load): < 750 µA
• Leakage current (at 230 V, 50 Hz, full load): < 750 µA
• Leakage current (at 277 V, 60 Hz, full load): < 750 µA
• Efficiency (at 120 V 60 Hz, full load): 88%
• Efficiency (at 230 V, 50 Hz, full load): 90%
• Efficiency (at 277 V 60 Hz, full load): 90%
• λ (at 120 V, 60 Hz, full load): 0.98
• λ (at 230 V, 50 Hz, full load): 0.95
• λ (at 277 V, 60 Hz, full load): 0.95
• Typ. input power in no-load operation: 1.56W
• Output voltage tolerance: 22.8V-25.2V
• Max. output power: 200W
• Output LF voltage ripple (< 120 Hz): ± 5 %
• Starting time (output): ≤ 1 s
• Hold on time at power failure (output): ≤ 1 ms
• Mains burst capability: 1kV
• Mains surge capability (between L - N): 5kV
• Mains surge capability (between L/N - PE): 10kV
• Surge voltage at output side (against PE): < 0.5kV
• Max. casing temperature tc: 85 °C
• Ambient temperature ta (at lifetime 50,000 h): 40 °C
• Storage temperature ts: -40 ... +85 °C
• Type of protection: IP67
• Dimensions L x W x H: 232 x 68 x 43.5 mm
• Hole spacing D: 217mm
• Product description: Constant voltage LED driver. Universal input voltage range. Max. output power 200 W. Nominal lifetime up to 50,000 h.
• Housing properties: Casing: aluminum, grey. Type of protection IP67. Dry, damp and wet location. Potted version: higher protection against corrosion Functions.
• Overtemperature protection, Overload protection, Short-circuit protection, No-load protection
