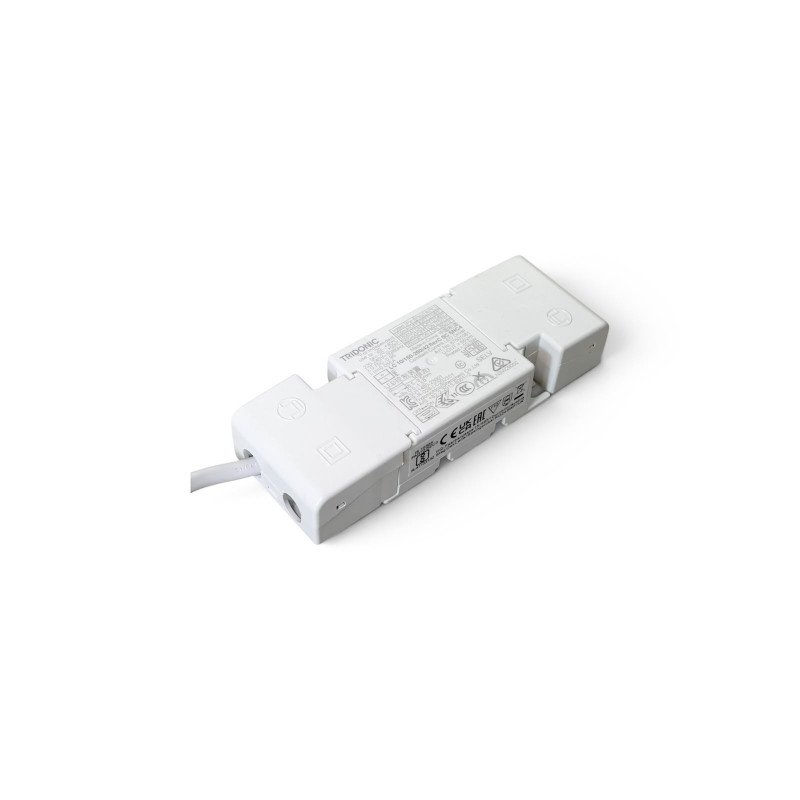

TRIDONIC LC 10/150-250/42 flexC SC SNC4 CC LED Driver

       Product Specifications:

         TRIDONIC LC 10/150-250/42 flexC SC SNC4 Constant Current LED Driver

• Model No.: LC 10/150-250/42 flexC SC SNC4


         TECHNICAL DATA

         COMMON DATA

• Rated Supply Voltage: 220-240V
• AC Voltage Range: 198-264V
• Mains Frequency: 50/60Hz
• Overvoltage Protection: 320VAC, 2h
• Max. Input Current (at 230 V, 50 Hz, full load): 55mA
• Typ. power consumption (at 230 V, 50 Hz, full load): 12.5W
• Min. output power: 3.6W
• Typ. efficiency (at 230 V, 50 Hz, full load): 80.5%
• λ over full operating range (max.): 0.95
• λ over full operating range (min.): 0.75C
• THD (at 230 V, 50 Hz, full load): <15%
• Starting time (at 230 V, 50 Hz, full load): ≤ 0.5 s
• Turn off time (at 230 V, 50 Hz, full load): ≤ 0.5 s
• Hold on time at power failure (output): 0s
• Output current tolerance: ± 10 %
• Max. output current peak: ≤ output current + 12 %
• Output LF current ripple (< 120 Hz): ± 5 %
• Output P_ST_LM (at full load): ≤ 1
• Output SVM (at full load): ≤ 0.4
• Max. output voltage (U-OUT): 55V
• Mains surge capability (between L - N): 1kV
• Mains surge capability (between L/N - PE): 2kV
• Mains burst capability: 1kV
• Surge voltage at output side (against PE): 3kV
• Ambient temperature ta (at lifetime 50,000 h): 50 °C
• Storage temperature ts: -40 – 80 °C
• Type of protection: IP20
• Dimensions (LxWxH): 118.5mmx42mmx22.5

         PRODUCT DESCRIPTION

• Fixed output LED driver
• Can be either used built-in or independent with clip-on strain-relief (see accessory)
• Independent LED driver with cable clamps
• For luminaires of protection class I and protection class II
• Temperature protection as per EN 61347-2-13 C5e
• Constant current LED driver
• Selectable fixed output current via DIP switch 150, 180, 200 and 250 mA (pre-selected current 150mA)
• Max. output power 10.5 W
• Nominal lifetime up to 100,000 h

         HOUSING PROPERTIES

• Casing: polycarbonate, white
• Type of protection IP20

         FUNCTIONS

• Overload protection
• Short-circuit protection
• No-load protection

         TYPICAL APPLICATION

• For spot light and downlight in retail and hospitality applications
• For panel light and area light in office and education application

         TRIDONIC LC 10/150-250/42 flexC SC SNC4
