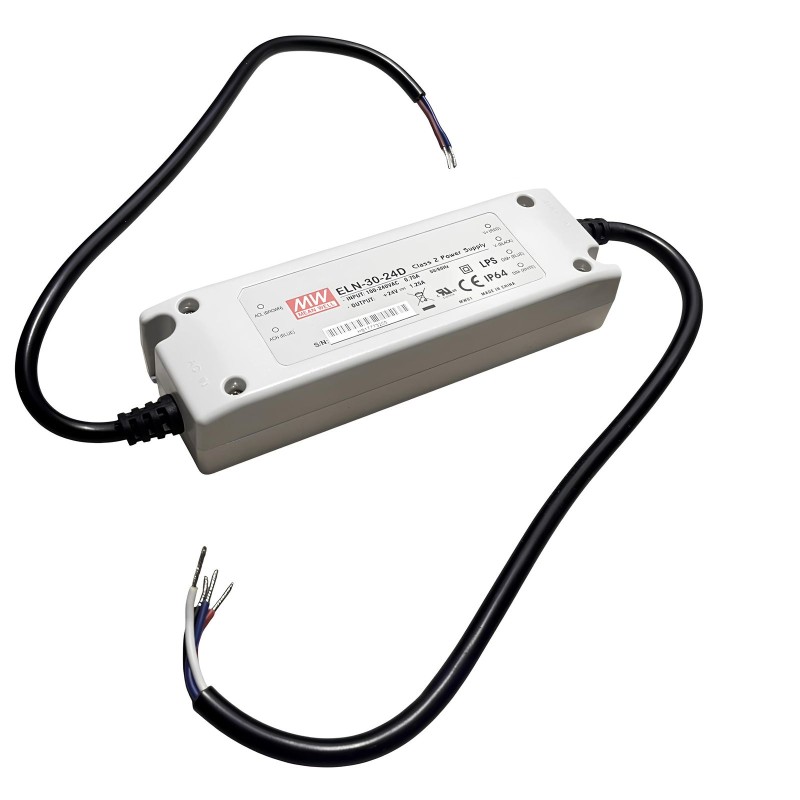

MEAN WELL ELN-30-24D SINGLE OUTPUT SWITCHING POWER SUPPLY 30W24V

       PRODUCT SPECIFICATIONS:

         MEAN WELL ELN-30-24D SINGLE OUTPUT SWITCHING POWER SUPPLY 30W24V

          Model: ELN-30-24D

          IP Grade: IP64

         OUTPUT

• DC Voltage: 24V
• LED Operation Voltage: 3~24V
• Rated Current: 1.25A
• Current Range: 0~1.25A
• Rated Power: 30W
• Ripple & Noise: 150mVp-p
• Voltage ADJ. Range: 21.6~26.4V (Can be Adjusted by Internal Potential Meter SVR1)
• Current ADJ. Range: -25% ~ 3%, Can be Adjusted by Internal Potential Meter SVR2
• Voltage Tolerance: ±5.0%
• Line Regulation: ±1.0%
• Load Regulation: ±2.0%
• Setup, Rise Time: 500ms, 80ms/230VAC    1000ms,80ms/115VAC at Full Load
• Hold Up Time: 50ms/230VAC    16ms/115VAC at Full Load

         INPUT

• Voltage Range: 100-240VAC
• Frequency Range: 47 ~ 63Hz
• Efficiency: 85%
• AC Current: 0.75A/115VAC     0.48A/230VAC
• Inrush Current: Cold Star 60A/230VAC
• Leakage Current: 0.25mA/240VAC

         PROTECTION

• Over Current: 95 ~ 110% (Protection Type: Constant Current Limiting, Recovers Automatically After Fault Condition is Removed)
• Over Voltage: 28 ~ 32V (Protection Type: Shut Down O/P Voltage, Re-power on to Recover

          FUNCTION

• Diming Control: 1~10VDC or PWM

         DIMENSION

          145*47*30mm (L*W*H)

         FEATURES

• Universal AC Input / Full Range
• Fully Isolated Plastic Case with IP64 Level
• Built-in Constant Current Limiting Circuit with Adjustable OCP Level
• Protections: Short Circuit / Overload / Over Voltage
• Optional Diming Function: 1 ~ 10VDC (D Type) or PWN (P Type) Controlled
• UL1310 Class 2 Power Unit
• Cooling by Free Air Convention
• 100% Full Load Burn-in Test
• Suitable for LED Lighting and Moving Sign Applications

          DATA SHEET (ELN-30-24D)
