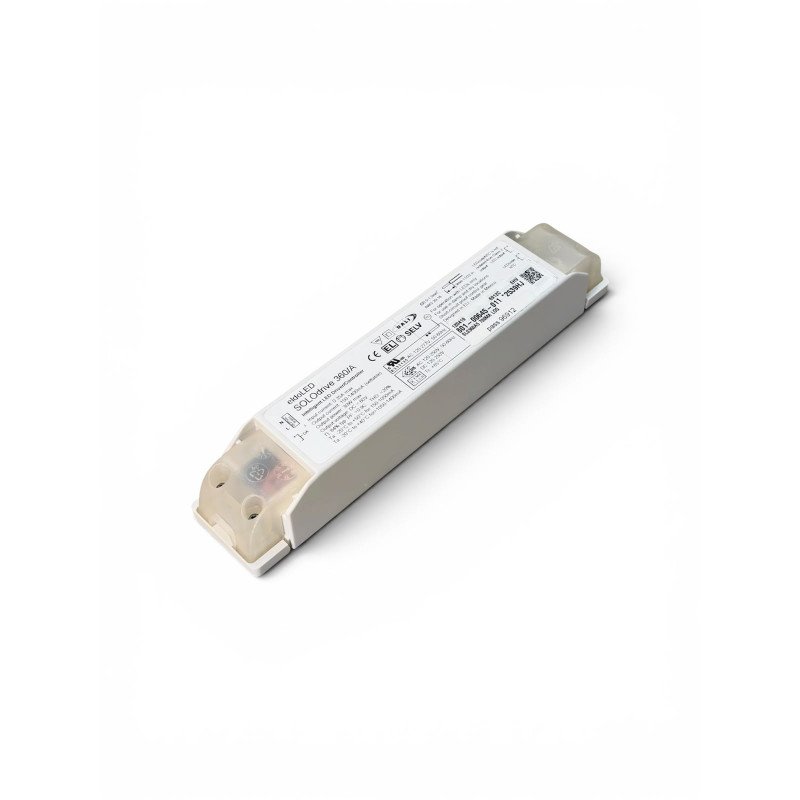

eldoLED SOLOdrive 360/A AC, 30W DALI Constant Current LED Driver

       Product Specifications:

         eldoLED SOLOdrive 360/A AC, 30W DALI Constant Current LED Driver

• Dimensions: 21,00 × 4,00 × 3,35 cm

         INPUT CHARACTERISTICS

• Nominal input voltage range AC 120 – 250V (ENEC), 120 – 277V (UL)
• Absolute input voltage range AC 108 – 305V
• Nominal input voltage range DC 120 – 250V
• Maximum input current AC 0.35A @ 120V; 0.3A @ 230V; 0.15A @ 277V
• Input frequency range 50 – 60Hz
• Efficiency at full load 84%
• Power factor at full load > 0.9
• THD at full load < 15%
• Maximum inrush current AC < 100mA²s @ 120V; < 100mA²s @ 230V; < 100mA²s @ 277V
• Surge protection 2kV differential mode (DM); 2kV common mode (CM)
• Maximum standby power < 0.5W

         OUTPUT CHARACTERISTICS

• Maximum LED output power 30W
• Number of LED outputs 1 (UL Class 2)
• Programmable LED output current range 150 – 1400mA
• LED output type Programmable in 1mA increments within specified current range
• LED output current tolerance +/- 5% at programmed LED output current
• LED output voltage range 2 – 55V

         CONTROL CHARACTERISTICS

• Control channels 1
• Control protocol LEDcode2 ; DALI-2 Device type 6 & Pulse dimming
• Dimming range 100% – 0.1%
• Dimming curve options Logarithmic (default)
• Linear
• Dimming method Hybrid HydraDrive
• Time delay to standby <25s

           SOLOdrive 360/A delivers 30W and is DALI-2 certified. The end caps function as wire restraints and make the driver perfectly suited for independent installations. As all SOLOdrives, the 360/A smoothly dims all the way down to dark.

         Features

• Hybrid Hydra Drive: provides the smoothest flicker-free high-performance dimming to dark for every fixture
• LEDcode2: connects to integrated digital accessories, supports location-based IoT applications and enables wired and wireless lighting control through LED code peripheral devices
• NTC interface for robust thermal management

         Benefits

• Industry-best dimming performance for your fixture/application
• Wide application area thanks to fully configurable dimming curve

         Certifications SL0360A6

• CE
• EN 61347-1/-2-13, EN 62384, EN 55015,EN 55022, EN 61000-3-2, EN 61547
• IEC 62386-101 Ed. 2.0, IEC 62386-102 Ed. 2.0, IEC 62386-207 Ed. 1
• UL: Recognized Component (E333135), according to UL1310 and UL8750. US/Canada: Class 2 output.
• ENEC by DEKRA
• EL
• RCM by SAA
