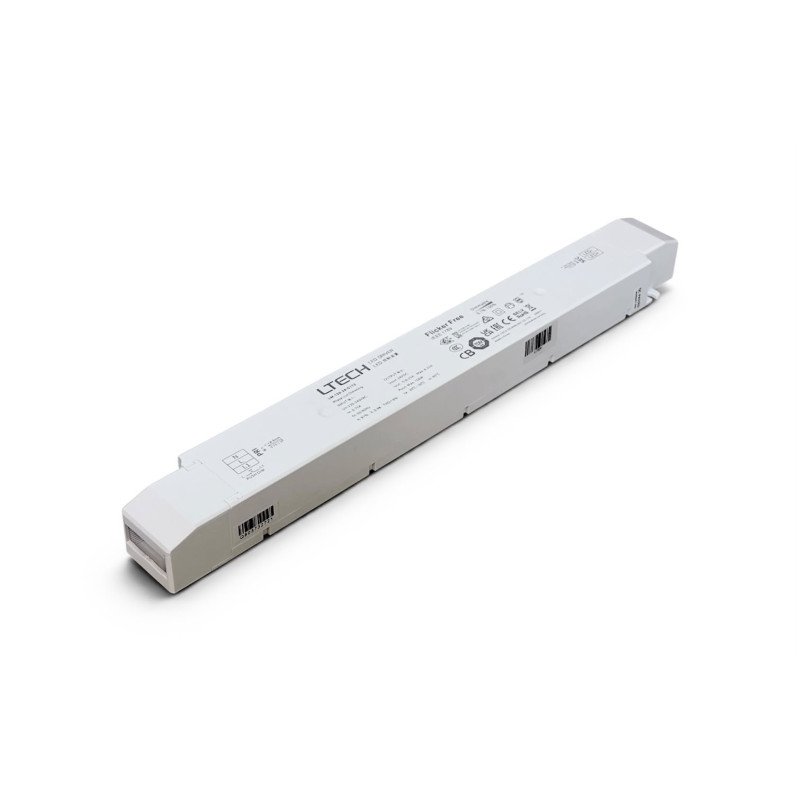

LTECH 150W 24V CV LED Driver LM-150-24-G1T2 | TRIAC Dimmable

       Product Specifications:

         LTECH 150W 24V CV Intelligent LED Driver LM-150-24-G1T2 | TRIAC Dimmable

• Model No.: LM-150-24-G1T2

         OUTPUT

• Output Voltage: 24VDC
• Output Voltage Range: 24Vdc ± 0.5Vdc
• Output Current: Max. 6.25A
• Output Power: Max. 150W
• Output Power Range: 0-150W
• Strobe Level: High frequency exemption level
• Dimming Range: 0-100%, down to 0.1%
• Overload Power Limitation: ≥102%
• Ripple: ≤200mV
• PWM Frequency: 3600Hz

         INPUT

• Dimming Interface: TRIAC/ELV, Push DIM

• Input Voltage: 220-240VAC
• Frequency: 50/60Hz
• Input Current: ≤0.75A/230Vac
• Power Factor: PF>0.98/230Vac (at full load)
• THD: THD?6%@230Vac (at full load)
• Efficiency: 91%
• Inrush Current: Cold start 45A/230Vac
• Anti-Surge: L-N: 2KV
• Leakage Current: Max. 0.5mA

         ENVIRONMENT

• Working Temperature: ta: -20 ~ 50°C   tc: 90°C
• Working Humidity: 20 ~ 95%RH, non-condensing
• Storage Temperature, Humidity: -40 ~ 80°C, 10~95%RH
• Temperature Coefficient: ±0.03%/°C(0-50°C)
• Vibration: 10~500Hz, 2G 12min/1cycle, 72 min for X, Y and Z axes respectively

         PROTECTION

• Overheat Protection: Intelligently adjust or turn off the output current if the PCB temperature ≥110°C, and recover automatically
• Overload Protection: Shut down the output when current load≥102%, and recover automatically
• Short-circuit Protection: Enter hiccup mode if short circuit occurs, and recover automatically
• Overvoltage Protection: Shut down the output when non-load voltage≥28V, and recover automatically | Shut down the output when non-load voltage≥16V, and recover automatically

         OTHERS

• Gross Weight (G.W): 430g±10g
• Dimensions: 352×43×30mm(L×W×H)
• Package Size: 355×44×33mm(L×W×H)

          FEATURE

• The housing is made from V0 flame retardant PC materials that SAMSUNG/COVESTRO uses.
• The clamshell design and screwless type for strain-relief. The design of dismountable end cap allows you to adjust the length of housing depending on your needs
• With soft-on and fade-in dimming function, enhancing your visual comfort.
• High frequency exemption level.
• Dimming from 0~100%, down to 0.1%. Support Leading edge (Triac), Trailing edge (ELV) and Push DIM.
• The secure and reliable design for signal isolation.
• Innovative thermal management technology intelligently protects the life of the LED driver.
• Overheat, over voltage, overload, short circuit protection and automatic recovery.
• Suitable for Class ?/?/? indoor light fixtures. Up to 50,000-hour lifetime. 5-year warranty (Rubicon capacitor).
• Flicker Free IEEE 1789 Achieve the Exemption Level.
• Dimmable: 0.1%-100%.

          LTECH LM-150-24-G1T2 Datasheet
