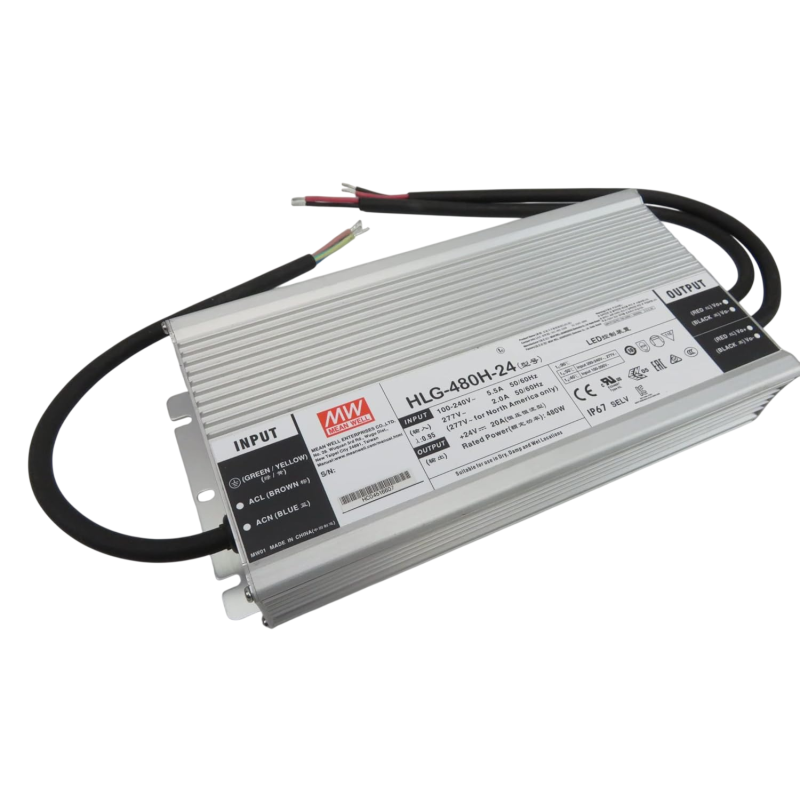

MEAN WELL HLG-480H-24 LED DRIVER 24V-480W-20A IP67

       PRODUCT SPECIFICATIONS:

         AC-DC Single output LED Driver Mix Mode (CV+CC) with built-in PFC; Output 24VDC at 20A; Fixed CC/CV; IP67; Cable output

• Model: HLG-480H-24

         OUTPUT

• DC Voltage: 24V
• Constant Current Region: 12~24V
• Rated Current: 20A
• Rated Power: 480W
• Ripple & Noise: 200mVp-p
• Voltage Adj. Range: 20.4~25.2V
• Current Adj. Range: 10~20A
• Voltage Tolerance: ±1.0%
• Line Regulation: ±0.5%
• Load Regulation: ±0.5%
• Setup, Rise Time: 500ms, 80ms 115VAC/230VAC
• Hold Up Time: 16ms 115VAC/230VAC

         INPUT

• Voltage Range: 90 ~ 305VAC     127 ~ 431VDC

• Frequency Range: 47 ~ 63Hz
• Power Factor: PF≥0.98/115VAC, PF≥0.97/230VAC, PF≥0.95/277VAC @ Full Load

• Efficiency: 230VAC: 94%, 277VAC: 94.5%
• AC Current: 5A/115VAC, 2.45A/230VAC, 2A/277VAC
• Inrush Current: Cold Start 35A at 230VAC; Per NEMA 410
• Leakage Current: <0.75A/277VAC

         DIMENSION

• 262mmx125mmx43.8mm (LxWxH)

         HLG-480H-24 Datasheet
