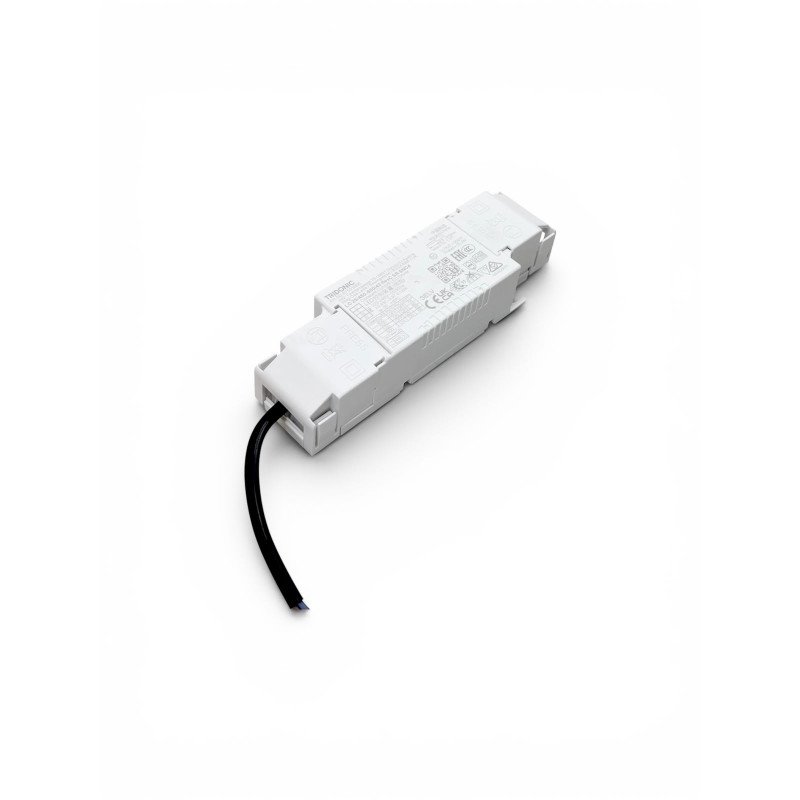

TRIDONIC LC 25/450-600/42 flexC SR SNC4 CC LED Driver

AED33.60
Tax included
LC 25/450-600/42 flexC SR SNC4
Quantity
Add to wishlist

  Secure payment

By Mamo Pay

  Free Shipping

On orders above AED 200

  Estimated Delivery

Dispatched within 24 hours

Guaranteed safe & secure checkout

       Product Specifications:

         TRIDONIC LC 25/450-600/42 flexC SR SNC4 Constant Current LED Driver

  • Model No.: LC 25/450-600/42 flexC SR SNC4



         TECHNICAL DATA

Output Current Min. Output Voltage Max. Output Voltage Typ. current consumption (at 230 V, 50 Hz, full load) Max. output power Typ. power consumption (at 230 V, 50 Hz, full load) Efficiency (at 230 V, 50 Hz, full load) Ambient temperature ta tc point max Resistor / I-out select
450mA 24V 42V 95mA 18.9W 21.5W 87% -20 – 40 °C 55.0 °C 1=off / 2=off
500mA 24V 42V 105mA 21W 24W 87% -20 – 40 °C 60.0 °C 1=on / 2=off
550mA 24V 42V 115mA 23.1W 26.5W 87.5% -20 – 40 °C 60.0 °C 1=off / 2=on
600mA 24V 42V 125mA 25.2W 28.5W 87.5% -20 – 40 °C 60.0 °C 1=on / 2=on



         COMMON DATA

  • Rated Supply Voltage: 220-240V
  • AC Voltage Range: 198-264V
  • Mains Frequency: 50/60Hz
  • Overvoltage Protection: 320VAC, 2h
  • Max. Input Current (at 230 V, 50 Hz, full load): 125mA
  • Typ. power consumption (at 230 V, 50 Hz, full load): 28.5W
  • Min. output power: 10.8W
  • Typ. efficiency (at 230 V, 50 Hz, full load): 87.5%
  • λ over full operating range (max.): 0.97
  • λ over full operating range (min.): 0.93C
  • THD (at 230 V, 50 Hz, full load): <15%
  • Starting time (at 230 V, 50 Hz, full load): ≤ 0.5 s
  • Turn off time (at 230 V, 50 Hz, full load): ≤ 0.5 s
  • Hold on time at power failure (output): 0s
  • Output current tolerance: ± 7.5 %
  • Max. output current peak: ≤ output current + 12 %
  • Output LF current ripple (< 120 Hz): ± 5 %
  • Output P_ST_LM (at full load): ≤ 1
  • Output SVM (at full load): ≤ 0.4
  • Max. output voltage (U-OUT): 55V
  • Mains surge capability (between L - N): 1kV
  • Mains surge capability (between L/N - PE): 2kV
  • Mains burst capability: 1kV
  • Surge voltage at output side (against PE): 3kV
  • Ambient temperature ta (at lifetime 50,000 h): 40 °C
  • Storage temperature ts: -40 – 80 °C
  • Type of protection: IP20
  • Dimensions (LxWxH): 147mmx43mmx30mm



         PRODUCT DESCRIPTION

  • Independent fixed output LED driver
  • For luminaires of protection class II
  • For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
  • Temperature protection as per EN 61347-2-13 C5e
  • Selectable fixed output current 450, 500, 550 and 600 mA (pre-selected current 450 mA)
  • Max. output power 25.5 W
  • Up to 87.5 % efficiency
  • Nominal lifetime up to 100,000 h



         HOUSING PROPERTIES

  • Casing: polycarbonate, white
  • Type of protection IP20



         INTERFACES

  • Terminal blocks: 45° push terminals



         FUNCTIONS

  • Overload protection
  • Short-circuit protection
  • No-load protection
  • Overtemperature protection
  • Burst protection voltage 1 kV
  • Burst protection voltage 1 kV (L to N)
  • Surge protection voltage 2 kV (L/N to earth)



         TYPICAL APPLICATION

  • For spot light and downlight in retail and hospitality applications
  • For panel light and area light in office and education application



         TRIDONIC LC 25/450-600/42 flexC SR SNC4 Datasheet
